| Head arrangement method | Counterpart arrangement |
| structural style | Adjustable at both ends, flat chamfered at both ends of the steel pipe |
| Number of tool holders on the cutter head | Single head 2 (flat head 1, chamfered edge 1) |
| Knife holder form | Floating chamfered tool holder, profiling inside the roller |
| Speed regulation method | Mechanical transmission combined with AC motor speed regulation, continuously variable speed |
| Headbox feeding method | Motor feed |
| Transportation method | Automatic hydraulic pickup and delivery device |
| Steel pipe clamping method | Hydraulic clamping |

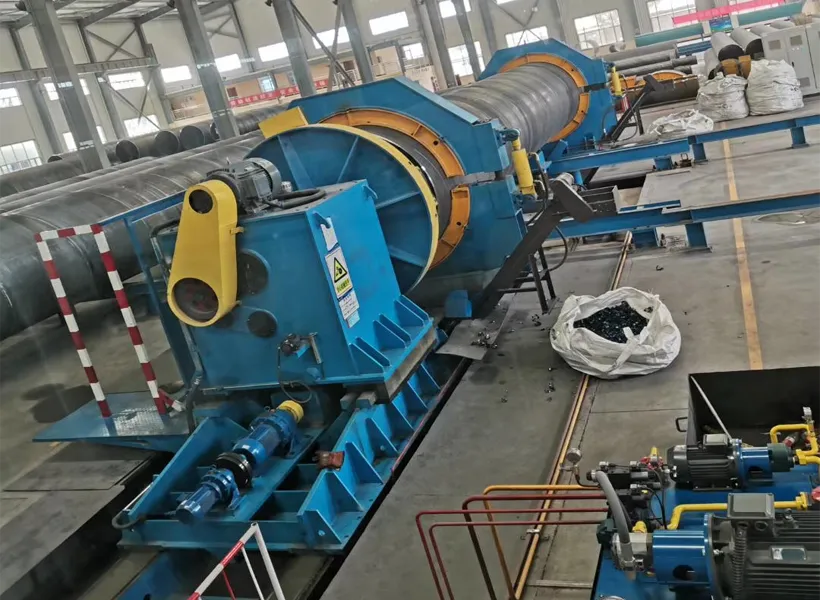

This tube chamfer machine is a symmetrical arrangement of units: two symmetrical main machines are installed on sliding seats at both ends, and two steel pipe lifting devices are placed on the centerline of the main machine. The host is composed of a base, sliding seat, headstock, cutterhead, steel pipe clamping device, etc. The equipment outside of the host includes a steel pipe lifting device, hydraulic system, and electrical system.
Hoist the steel pipe to the lifting device by driving the car → the lifting device lifts the steel pipe to the upper part of the cutting center → the base oil cylinder extends, drives the sliding seat to quickly approach the steel pipe, and the end of the steel pipe enters the clamping device → drops the steel pipe on the clamping device, And clamp at the same time→start the bedside box→fast forward→work forward→flat head chamfer→fast backward→clamp open→base oil cylinder retract, drive the sliding seat away from the steel pipe→lifting device down→drive the steel pipe out and place it on the table on shelf → to the next cycle
